IR2000 series from Chilink brings next-generation cellular connectivity at a highly competitive price. Offering global 3G, 4G/LTE & 5G band coverage in a compact industrial form factor, the ZR9000 series enables rapid deployment of high-speed IoT applications in verticals as diverse as Transportation, Enterprise Connectivity and Digital Signage.
1.Industrial Grade Design
– Rugged metal casing, handles extreme heat and cold well.
– Wide working voltage DC 6V to 36V. ESD and lightning protection.
– Both hardware and software watchdog, multi-layer link detection mechanisms
2.Convenient and Efficient Access to the Network Anytime, Anywhere
– 5G NR-SA/NR-NSA, TDD-LTE/FDD-LTE(Cat 20), WCDMA
– Wired/ADSL access
3.Security Data
– VPN client mode PPTP, L2TP, OpenVPN, IPsec, N2N GRE, EOIP, effectively ensuring the security and integrity of data transmission
– Qos, DMZ, Firewall (Domain Filter, Keyword Filter, Blacklist, Whitelist, virtual IP mapping, MAC-IP address binding)
4.Serial DTU
– TCP Client/server, UDP Client/server, MQTT, Modbus RTU, Modbus TCP, Transmit transparently(pass-through)
5.Powerful Functions for Professional Application
– Port Forwards, Static NAT, DDNS, SNMP(optional)
– Load Balancing, enables network failover between Wired/Wi-Fi and Cellular.
– Timing/Auto reboot function.
– Built-in network traffic monitoring and diagnostic tool for easy troubleshooting
– Support SMS functions
– Support FRPC and TR069
| IR2000 Software Specification | |
| Network Connection | |
| Network Access | APN, VPDN |
| Acess Authentication | CHAP/PAP |
| Network Type | 5G NR-SA/NR-NSA, TDD-LTE/FDD-LTE(Cat 20) (Please refer to the Ordering form for frequencies). |
| LAN Protocol | ARP |
| WAN Protocol | PPP, PPPoE, DHCP |
| Network Protocol | |
| IP Application | Ping, DHCP Server, DHCP Relay, DHCP Client, DNS relay, DDNS, Telnet |
| IP Routing | Static routing |
| NAT | Supports network address translation |
| Security | |
| Network Security | Stateful Packet Inspection (SPI), DoS attack defense |
| Multicast filter/Ping probe packet, Access Control List (ACL) | |
| Content URL filter, port mapping, virtual IP mapping, IP-MAC binding | |
| Data Security | PPTP, L2TP, GRE, IPSEC (L2TP over IPSEC), OPENVPN, N2N, EOIP |
| Reliability | |
| Link Detection | Sends heartbeat packets to detect, and redials when disconnected |
| Failover | Supports 4G and Wired and WiFI failover |
| Embedded Watchdog | Device runs self-detection, auto recovers from malfunctions |
| GPS | |
| GPS | Optional |
| Network Management | |
| QOS Management | Bandwidth, IP speed limit |
| Configuration | Web, SingleYun Cloud Platform |
| Upgrade | Web, SingleYun Cloud Platform |
| Log | Local system log, remote log |
| Power down saving of important logs | |
| SMS Functions | Status query, restart |
| Network Management | Supports SingleYun cloud platform, batch management |
| Traffic Management | Supports data traffic threshold, traffic statistics and traffic alarm |
| Maintenance Tools | Ping, route tracking, network speed test |
| Status Query | System status, modem status, network connection status, and routing status |
| FRPC | |
| TR069 | |
| IR2000 Hardware Specification | |
| Hardware Platform | |
| CPU | 880MHz |
| RAM | 256MB DDR3 |
| FLASH | 16MB |

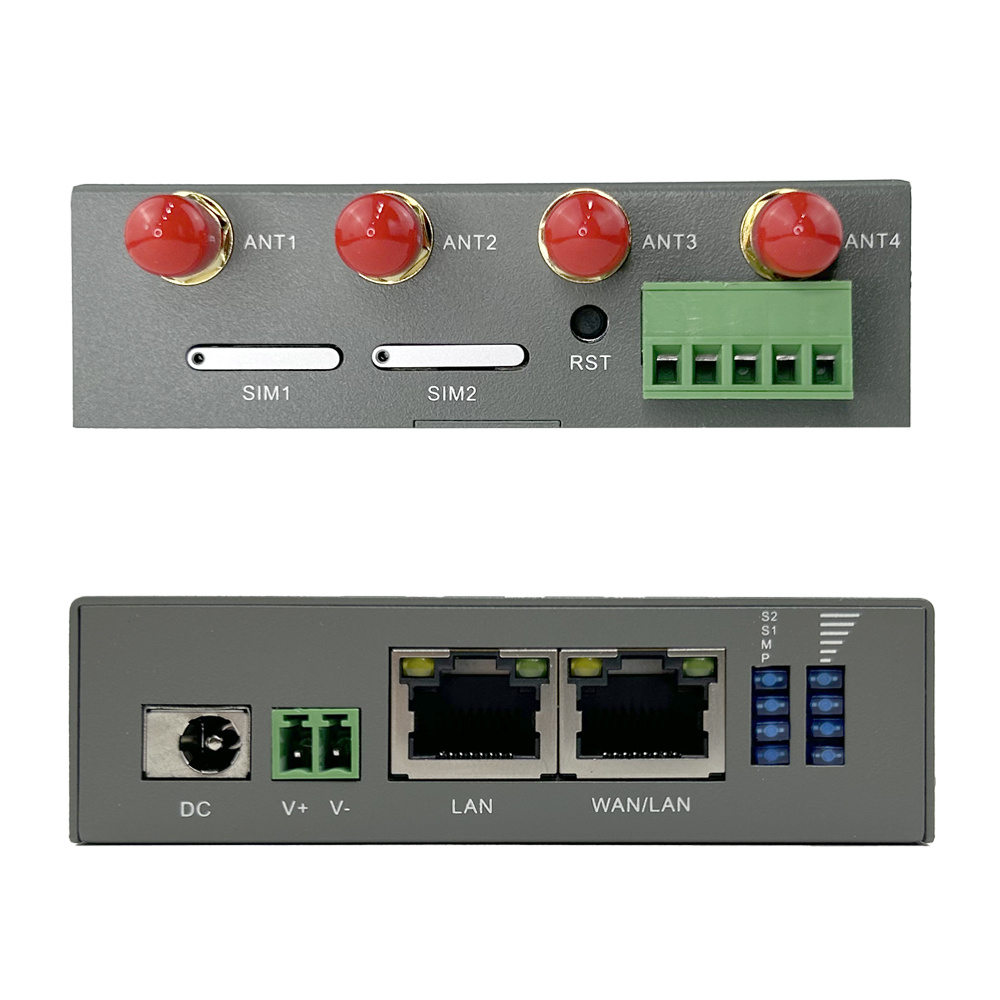

| Interface | |
| Ethernet Port | 2* 10/100/1000 Mbps fast Ethernet port, WAN/LAN port |
| 1.5KV network isolation transformer protection | |
| Power Supply | DC7.6-36V, over-current protection, anti-reverse connection, 2*PIN industrial terminal block |
| Serial port | 1*RS232 + 1*RS485 |
| Reset Button | Pinhole reset button |
| SIM Card | 2 Mini SIM (2 FF) |
| Antenna Connector | 4* 5G Antenna |
| Mechanical Specs | |
| Dimensions | 100 x 85 x 25 mm |
| Weight | 430g |
| Installation Method | Desktop, wall mounting, Din-rail mounting |
| Protection Rating | IP30 |
| Housing | Metal |
| Ambient Environment | |
| Storage Temperature | -40 ~ 80℃ |
| Ambient Humidty | 5~ 95% (non-condensing) |
| Operating Temperature | -30~ 70℃ |
| Series | Model | Fruquency Band | Applicable Countries | ||
| IR2000 | IR2730E (No WIFI) | 5G NR-NSA: n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48/n66/n71/n77/n78/n79 | North America | ||
| 5G NR-SA: n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48/n66/n71/n77/n78/n79 | |||||
| LTE FDD: B1/B2/B3/B4/B5/B7/B8/B12(B17)/ B13/B14/B18/B19/B20/B25/B26/ B28/B29/B30/B32/B66/B71 |
|||||
| LTE-TDD: B34/B38/B39/B40/B41/B42/B43/B48 | |||||
| WCDMA: B1/B2/B3/B4/B5/B6/B8/B19 | |||||
| IR2730E (No WIFI) | 5G NR-NSA: n41/n77/n78/n79 | Global (except for United States) | |||
| 5G NR-SA: n1/n2/n3/n5/n7/n8/n12/n20/n25/ n28/n38/n40/n41/n48*/n66/n71/n77/n78/n79 |
|||||
| LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/ B14/B17/B18/B19/B20/B25/B26/ B28/B29/B30/B32/B66/B71 |
|||||
| LTE-TDD: B34/B38/B39/B40/B41/B42/B43/B48 | |||||
| WCDMA: B1/B2/B3/B4/B5/B6/B8/B19 | |||||
