Chilink, IR4000 Dual Sim 4G Industrial IoT Gateway provides fast and reliable communication for monitoring and controlling remote equipment.
IR4000, 4G VPN Router is a kind of Versatile, easy-to-deploy, rugged and reliable VPN gateway designed for harsh environment, providing seamless, secure, fast wireless connectivity to M2M/IoT applications.
1.Industrial Grade Design
– Rugged metal casing, handles extreme heat and cold well
– Wide working voltage DC 7.5V to 32V. ESD and lightning protection
– Both hardware and software watchdog, multi-layer link detection mechanisms
2.Convenient and Efficient Access to the Network Anytime, Anywhere
– 4G cellular access, LTE CAT4 standard, compatible with 2G/3G network
– Wired/ADSL access
– WiFi wireless access
3.Security Data
– VPN client mode PPTP, L2TP, OpenVPN, IPsec, N2N GRE, EOIP, effectively ensuring the security and integrity of data transmission
– Qos, DMZ, Firewall (Domain Filter, Keyword Filter, Blacklist, Whitelist, virtual IP mapping, MAC-IP address binding)
4.Serial DTU
– TCP Client/server, UDP Client/server, MQTT, Modbus RTU, Modbus TCP, Transmit transparently(pass-through), I/O Controller
5.Powerful Functions for Professional Application
– Port Forwards, Static NAT, DDNS, SNMP(optional)
– Load Balancing, enables network failover between Wired/Wi-Fi and Cellular
– Timing/Auto reboot function
– Built-in network traffic monitoring and diagnostic tool for easy troubleshooting
– Support SMS functions
| IR4000-4G Software Specification | |
| Network Connection | |
| Network Access | APN, VPDN |
| Acess Authentication | CHAP/PAP |
| Network Type | GSM/GPRS/EDGE, UMTS/HSPA+/EVDO/TD-SCDMA/, TDD LTE/FDD LTE (Please refer to the Ordering form for frequencies). |
| LAN Protocol | ARP |
| WAN Protocol | PPP, PPPoE, DHCP |
| Network Protocol | |
| IP Application | Ping, DHCP Server, DHCP Relay, DHCP Client, DNS relay, DDNS, Telnet |
| IP Routing | Static routing |
| NAT | Supports network address translation |
| Security | |
| Network Security | Stateful Packet Inspection (SPI), DoS attack defense |
| Multicast filter/Ping probe packet, Access Control List (ACL) | |
| Content URL filter, port mapping, virtual IP mapping, IP-MAC binding | |
| Data Security | PPTP, L2TP, GRE, IPSEC (L2TP over IPSEC), OPENVPN, N2N, EOIP |
| Reliability | |
| Link Detection | Sends heartbeat packets to detect, and redials when disconnected |
| Failover | Supports 4G and Wired and WiFI failover, dual Sim failover |
| Embedded Watchdog | Device runs self-detection, auto recovers from malfunctions |
| WLAN (Optional) | |
| Protocol | IEEE 802.11b/g/n |
| Mode | AP, Client modes |
| Rate | Up to 300Mbps |
| Security | WEP/AES encryption |
| GPS | |
| GPS | Optional |
| Network Management | |
| QOS Management | Bandwidth, IP speed limit |
| Configuration | Web, SingleYun Cloud Platform |
| Upgrade | Web, SingleYun Cloud Platform |
| Log | Local system log, remote log |
| Power down saving of important logs | |
| SMS Functions | Status query, restart |
| Network Management | Supports SingleYun cloud platform, batch management |
| Traffic Management | Supports data traffic threshold, traffic statistics and traffic alarm |
| Maintenance Tools | Ping, route tracking, network speed test |
| Status Query | System status, modem status, network connection status, and routing status |
| IR4000-4G Hardware Specification | |
| Hardware Platform | |
| CPU | 880MHz |
| RAM | 256MB DDR3 |
| FLASH | 16MB |
| EMMC | 4GB |

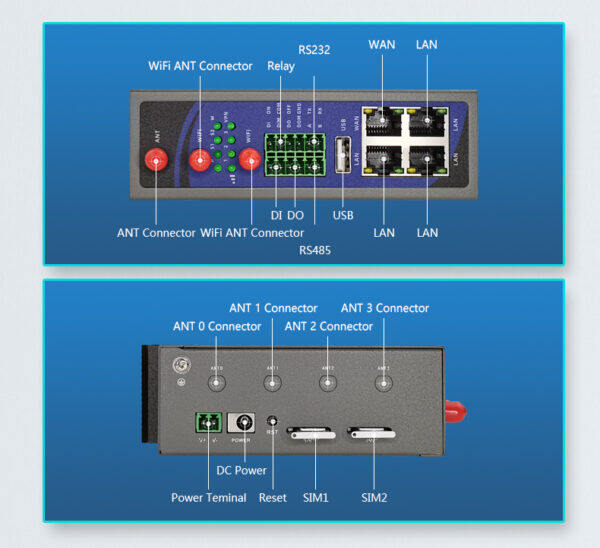

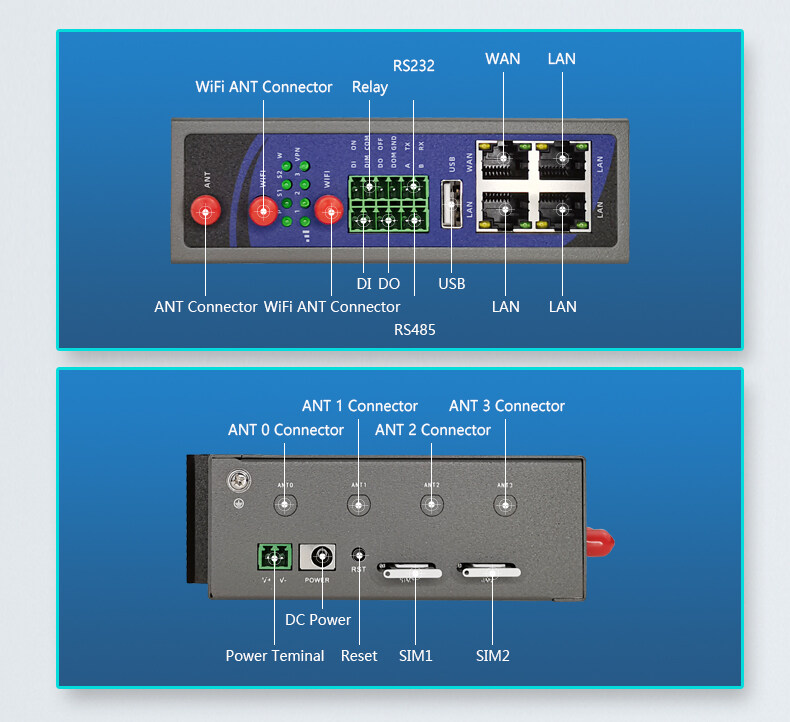

| Interface | |
| Ethernet Port | 4* Gigabit Mbps fast Ethernet port, WAN/LAN port |
| 1.5KV network isolation transformer protection | |
| Power Supply | DC7.5-32V, over-current protectiob, anti-reverse connection, 2*PIN industrial terminal block |
| Serial port | 1*RS232+1*RS485 |
| I/O Port | 1*DI + 1*DO, 1*Relay |
| USB | 1*USB3.0 |
| Reset Button | Pinhole reset button |
| SIM Card | 2 Mini SIM (2 FF) |
| Wi-Fi (Optional) | IEEE 802.11b/g/n, 300Mbps |
| Antenna Connector | 4G：SMA x 1; Wi-Fi：RP-SMA x 2 |
| Mechanical Specs | |

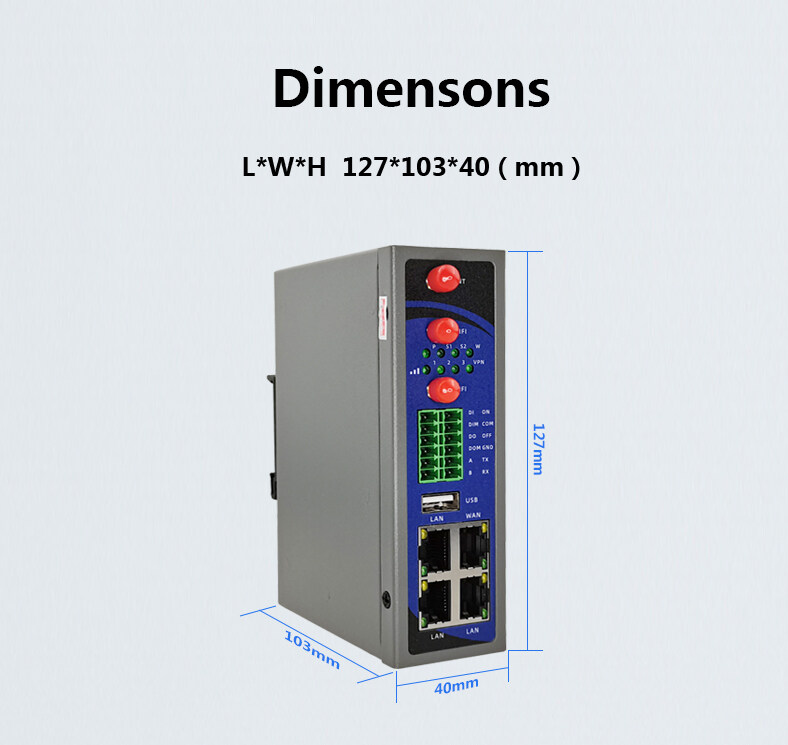

| Dimensions | 127×103×41mm |
| Weight | 410g |
| Installation Method | Desktop, wall mounting, Din-rail mounting |
| Protection Rating | IP30 |
| Housing | Metal |
| Ambient Environment | |
| Storage Temperature | -40 ~ 80℃ |
| Ambient Humidty | 5~ 95% (non-condensing) |
| Operating Temperature | -30~ 70℃ |
| Series | Model | Fruquency Band | Applicable Countries | ||
| IR4000-4G | IR4731S-4G (WIFI) IR4730S-4G (No WIFI) | TDD-LTE:B38/B39/B40/B41 FDD-LTE:B1/B3/B5/B8 UMTS:B1/B8 TD-SCDMA:B34/B39 EVDO:BC0 CDMA1x:BC0 GSM:B3/B8 GSM:B2/B3/B5/B8 | Mainland China | ||
| IR4731E-4G (WIFI) IR4730E-4G (No WIFI) | LTE FDD: B1/B3/B7/B8/B20/B28A LTE TDD: B38/B40/B41 WCDMA: B1/B8 GSM: B3/B8 |
Europe/Middle Asia/Africa/Korea/Thailand/India | |||
| IR4731N-4G (WIFI) IR4730N-4G (No WIFI) | 1.FDD:B2/4/5/12/13/17/B18/B25/26 TDD:B41 WCDMA:B2/4/5 EVDO:BC0/1 GSM:850/1900 2.LTE FDD: B2/B4/B5/B12/B13/B14/B66/B71 WCDMA: B2/B4/B5 |
North America | |||
| IR4731A-4G (WIFI) IR4730A-4G (No WIFI) | FDD:B1/3/5/7/8/28 TDD:B40 WCDMA:B1/5/8 GSM:850/900/1800/1900 |
Australia/New Zealand/Taiwan | |||
| IR4731V (WIFI) IR4730V (No WIFI) | FDD:B2/4/5/7/8/28 TDD:B40 WCDMA:B2/5/8 GSM:850/900/1800/1900 |
Latin America | |||
| IR4731G (WIFI) IR4730G (No WIFI) | LTE-TDD: B34/B38/B39/B40/B41 LTEFDD:B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66 UMTS/HSPA+ :B1/B2/B4/B5/B6/B8/B19 GSM/GPRS/EDGE:850/900/1800/1900MHz |
Global | |||
