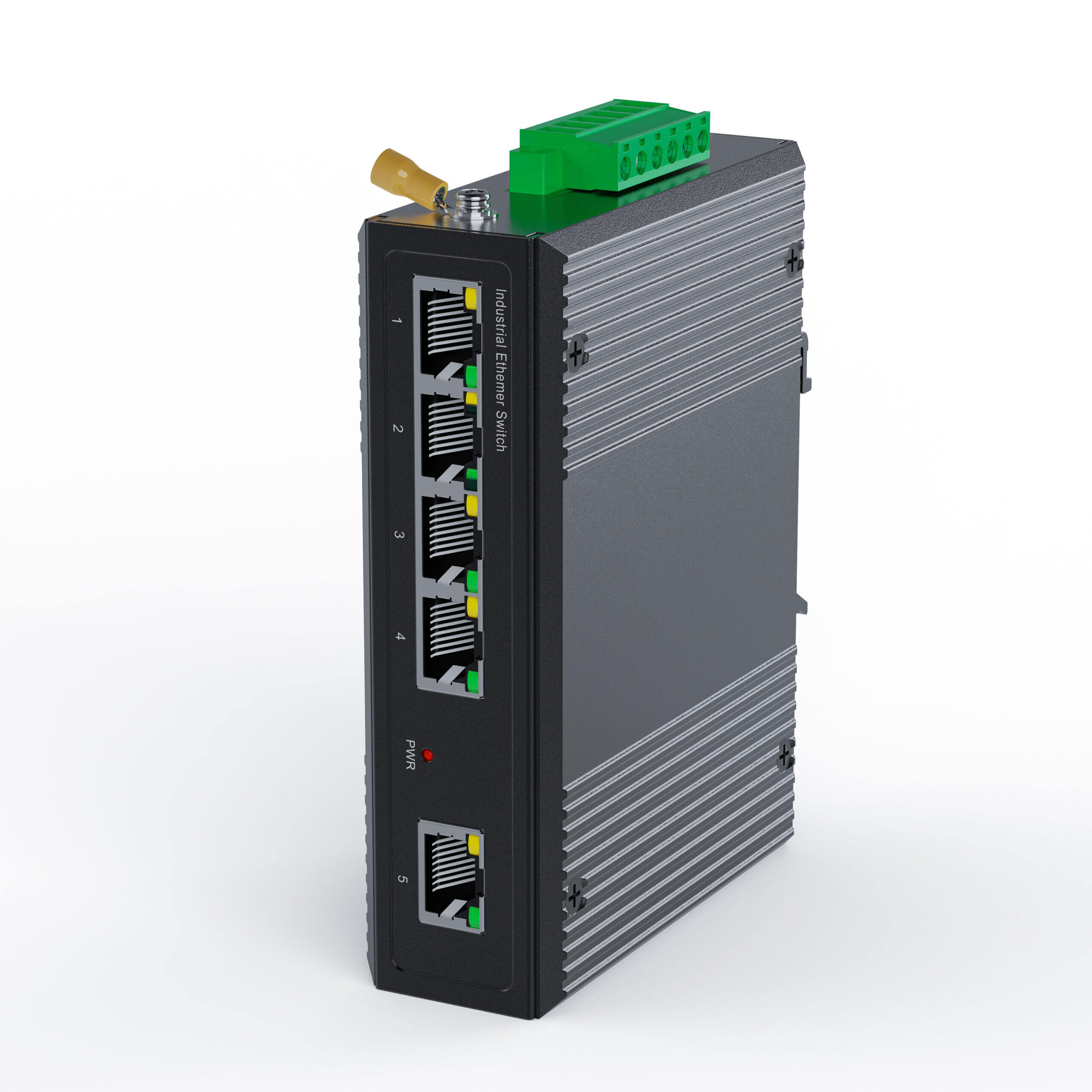

5 *100M or 1000M electrical ports industrial Ethernet switches,. The products comply with FCC, CE, ROHS certificate. ZL-IE6051-5 series has an operating temperature of -40°C to 85°C. It has super robustness and can adapt to various harsh environments. It can also be easily placed in a compact control box. The installation feature of guide rail, wide temperature operation, IP40 protection grade shell and LED indicator light make ZL-IE6051-5 series a plug-and-play industrial-grade device, providing a reliable and convenient solution for users’ Ethernet device networking The solution can be widely used in industries with Ethernet access such as smart cities, smart transportation, smart pipe corridors, and smart industries.

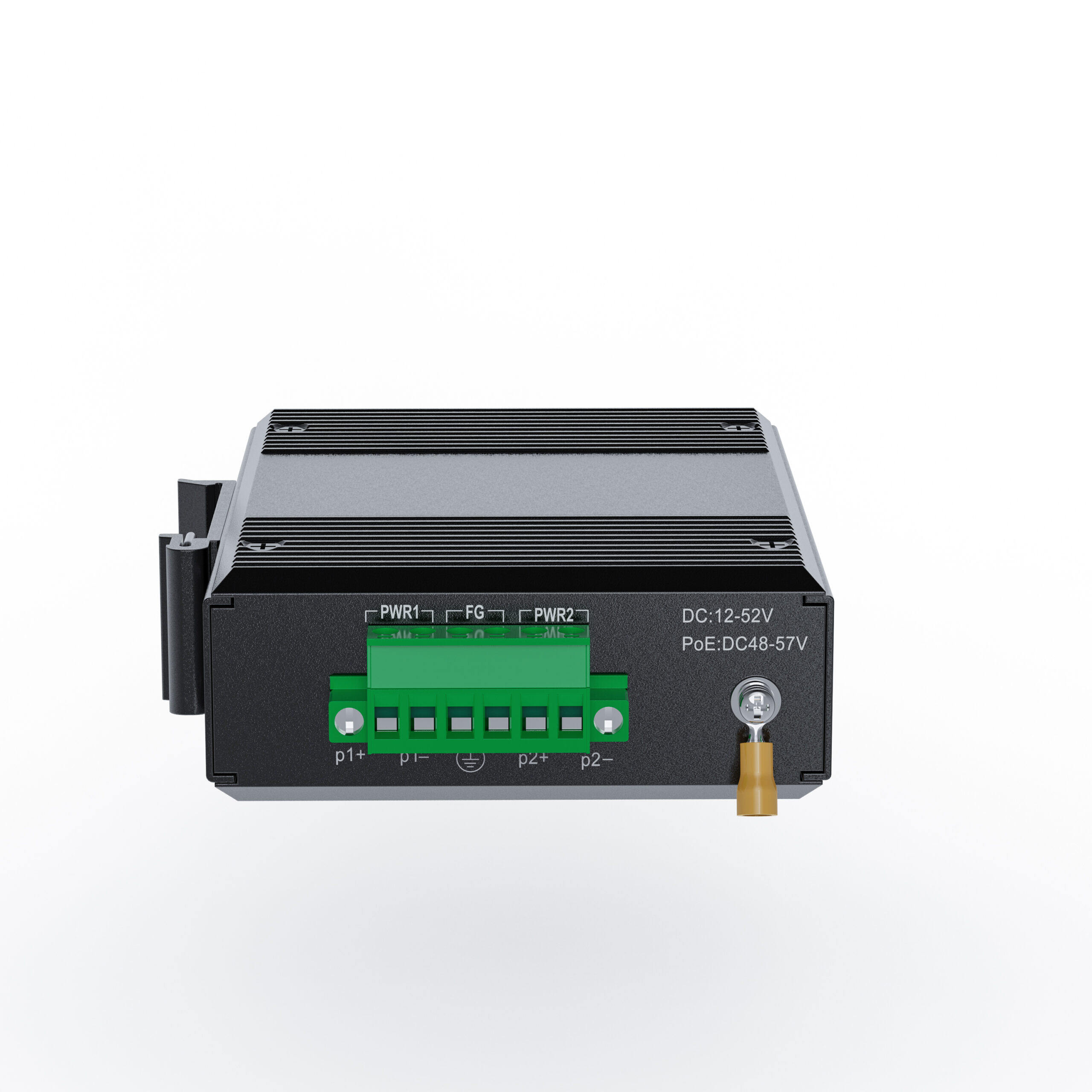

| Power Requirement | 12~52VDC, 3-pin 5.08mm pitch terminal blocks |
| Anti-reverse connection protection, built-in over-current 3.0A protection | |
| Power Consumption | No-load: 0.4W@24VDC |
| Full-load: 1.0W@24VDC | |
| Environmental Limit | Operating temperature range: -40~85℃ |
| Storage temperature range: -40~85℃ | |
| Relative humidity: 5%～95%(no condensation) | |
| Physical Characteristic | Housing: IP40 protection, metal |

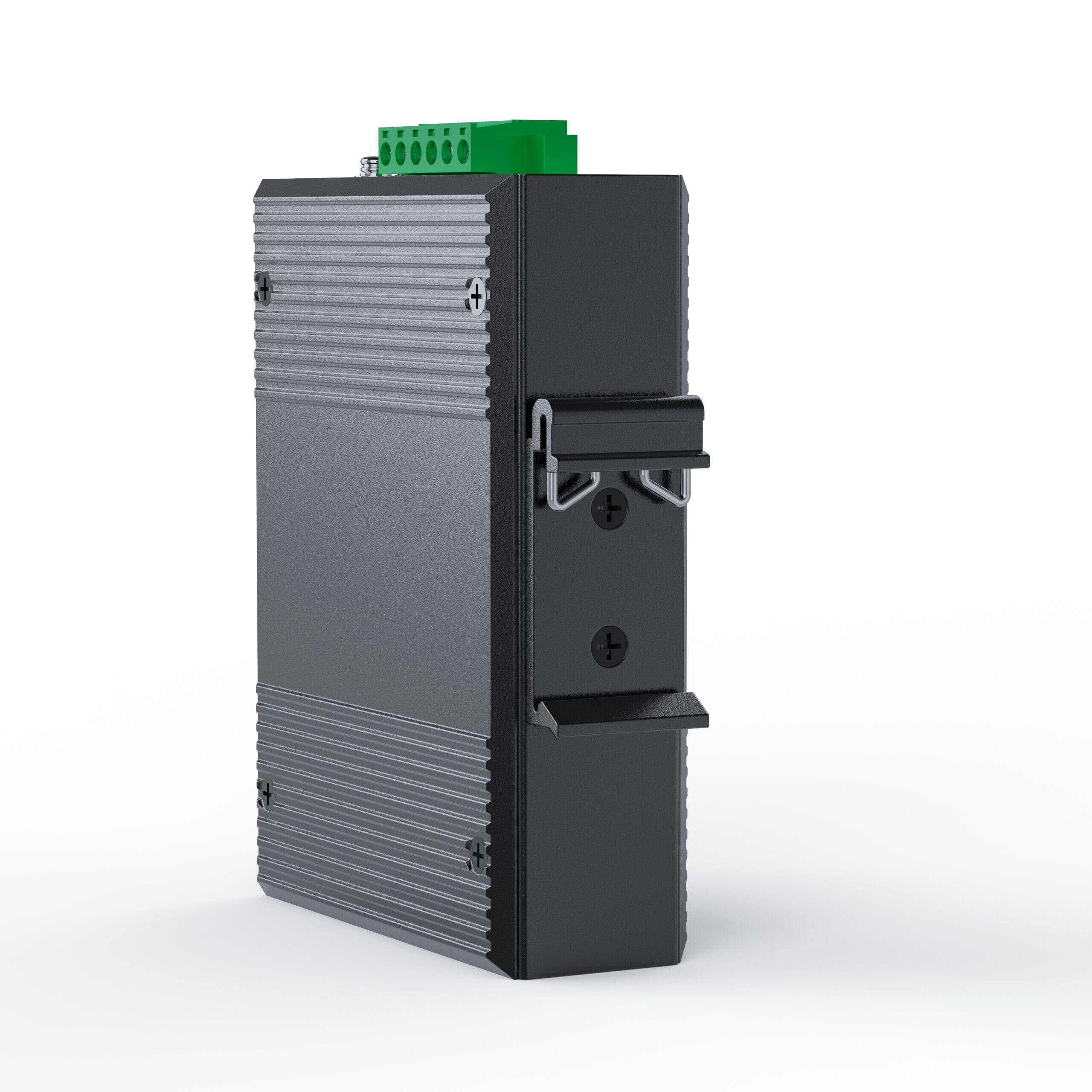

| Installation: DIN-Rail mounting or wall mounting | |
| Dimension (L x W x H): 116mm×88mm×34mm | |
| Weight: 360g | |
| Industrial Standard | EMI:FCC Part 15 Subpart B Class A，EN 55022 Class A |
| EMS :IEC(EN)61000-4-2(ESD): ±8kV(contact), ±15kV(air) | |
| lContact discharge: ±6kV | |
| IEC(EN)61000-4-3(RS): 10V/m(80～1000MHz) | |
| IEC(EN)61000-4-4(EFT):PowerPort:±4kV; | |
| Data Port: ±2kV | |
| IEC(EN)61000-4-5(Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV | |
| IEC61000-4-6(CS): 10V(150kHz～80MHz)/IEC(EN)61000-4-16(CM EMI): 30V cont. 300V,1s | |
| IEC 60068-2-27 (Shock)/EC 60068-2-32 (Freefall) | |
| IEC 60068-2-6 (Vibration) | |
| Certification | CE, FCC, RoHS |
| Warranty | 3 years |
| Available Models | Copper Port | Power Supply |
| ZL-IE6051-5TX | 5*100M | 12-52V |
| ZL-IE6051-5GX | 5*1000M | 12-52V |
