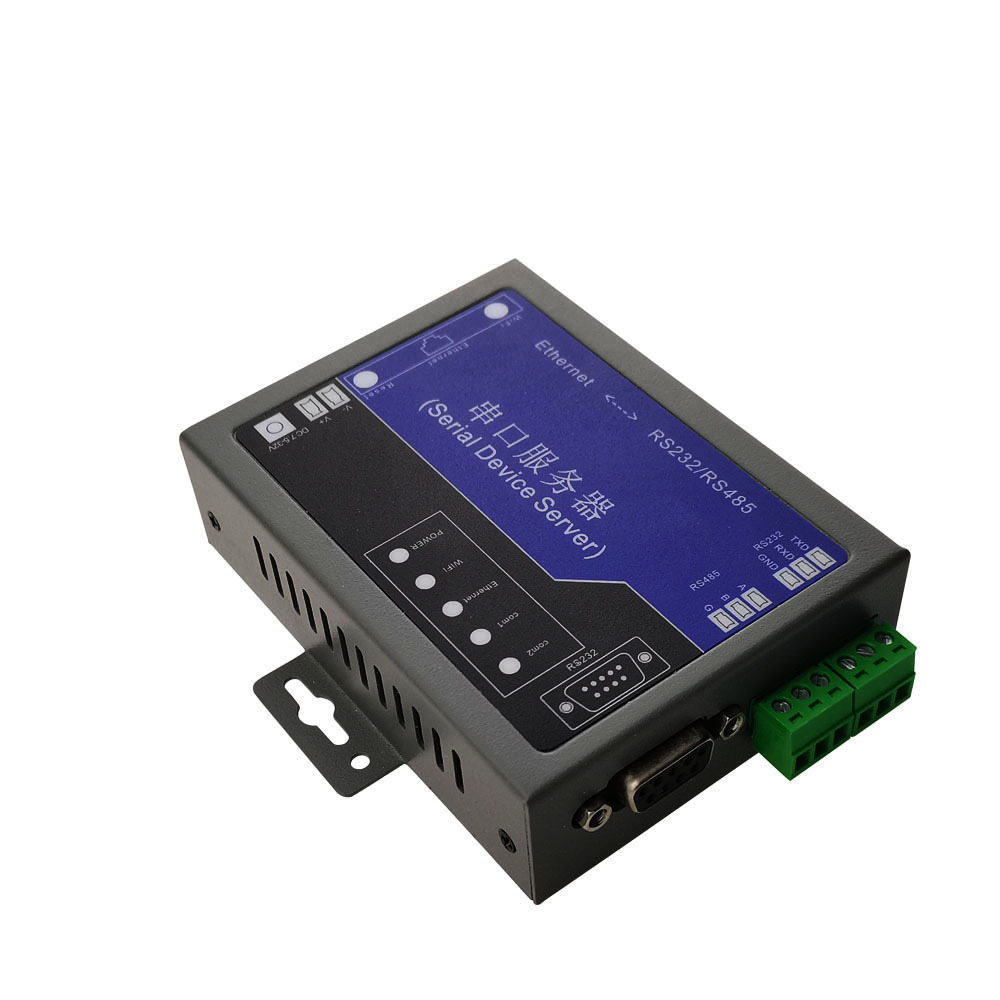

SS2030 is one kind of serial to Ethernet converter, serial device server, with rugged industrial design to withstand the harsh environment, which is widely used in industrial application.
| Isolation Characteristic | |
| Power Isolation | 3KV |
| RS485 ESD Protection | 15KV |
| Communicate Interface | |
| Ethernet | 10M/100M, 2KV surge protection |
| Serial Parameters | |
| Serial | RS-232/485 |
| Parity bits | None, Even, Odd, Space, Mark |
| Data bits | 6～9 |
| stop bit | 1,2 |
| Flow control | None |
| Software | |
| protocol | TCP,HTTP,UDP,ARP,IP,DNS,DHCP |
| Setting method | WEB browser, SingleYun cloud Platform |
| Power | |
| Range | 7.5~32V DC |
| Standard | 12V1A |

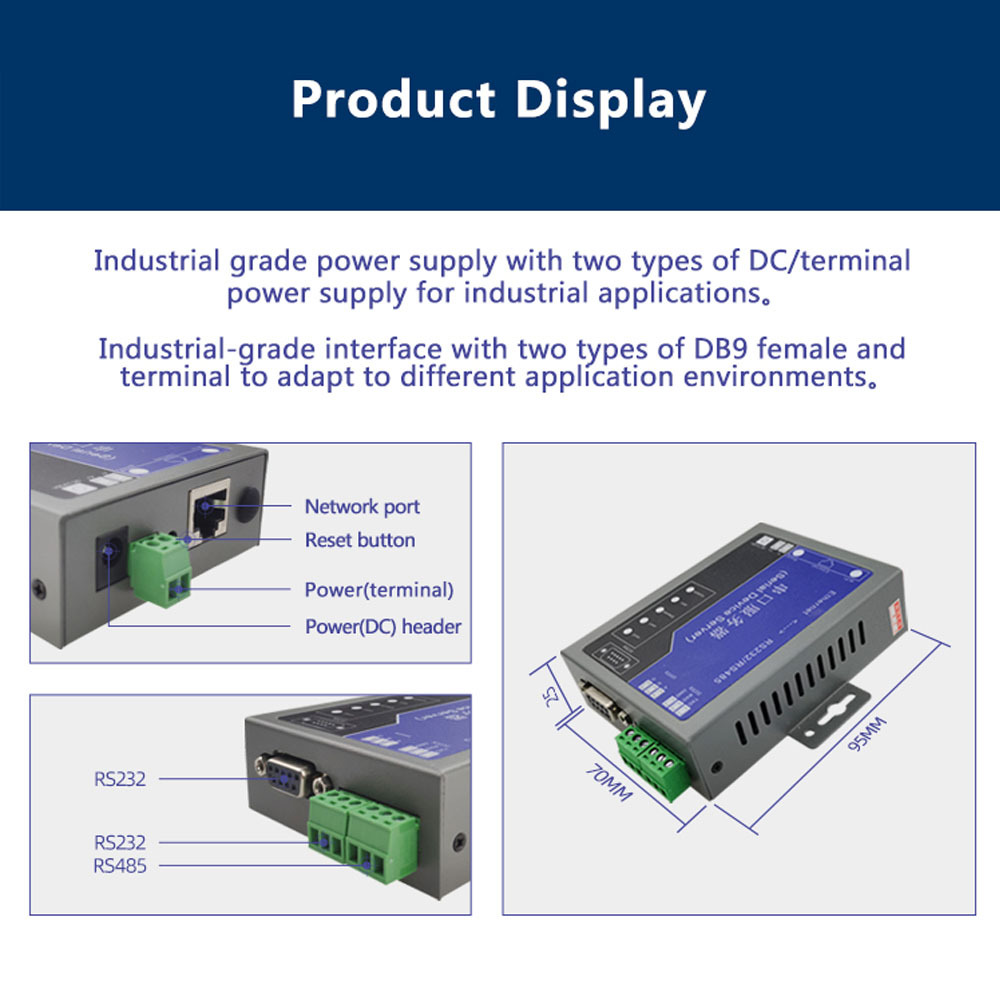

| Physical Characteristics | |
| Housing | Metal |
| Size | 95x72x25mm |
| Weight | 185g |
| Environmental | |
| Operating Temperature | -30~+70℃ |
| Storage Temperature | -40~+85 |
| Relative Humidity | < 95% non-condensing |
